Spherical Roller Thrust Bearing 29448 Applied in Vertical Engine 240*440*122mm
Quick Details:
- Spherical Roller Thrust Bearing 29448
- Bearing Material: Chrome steel
- Cage: Brass/Steel Cage
- Abundant Stock &Quick Delivery
- Brands: YGB or OEM
Specifications:
| Model Number | 29448 |
| Brand Name | YGB or OEM |
| Dimension | 240*440*122mm |
| Weight | 80KG |
| Basic Load Rating | Dynamic:3400KN ; |
| Static:10200KN |
| Limiting Speed | 1500rpm |
| Type | Spherical Roller Thrust Bearing |
| Seals Type | OPEN |
| Material | Chrome Steel |
| Cage material | Brass/Steel |
| Clearance | C0,C2,C3,C4,C5 |
| Vibration | Z1V1,Z2V2 and Z3V3 |
| Precision Level | P0,P6,P5,P4,P2(ABEC1, ABEC3, ABEC5, ABEC7, ABEC9) |
| Number of Row | Single Row |
| Guarantee | One year. |
| Certifications | ISO 9001:2008 |
| Package | Box, Carton, Wooden Case, Plastic Tube or Per buyers requirement. |
| Place of Origin | China (Mainland) |
| MOQ | 10PCS |
| Service | (1) Prompt Delivery |
| (2) OEM |
| (3) Buyer Label accepted |
| (4) Follow up and maintenance |
| Payment Term | TT or L/C or Western Union |
| Port | Shanghai/Shenzhen |
Description:
Spherical Roller Thrust Bearing (29448)
Spherical roller thrust bearings can support very heavy axial loads and permit relatively high speed operation.
Spherical roller thrust bearings are produced in two designs depending on the size and series.
Bearings up to and including size 68 identified by the designation suffix E have a pressed steel window-type cage which, with the rollers, forms a non-separable assembly with the shaft washer.
All other bearings have a machined brass or steel cage which is guided by a sleeve held in the shaft washer bore.
The shaft washer and cage with rollers form a non-separable unit. roller bearing, roller bearings
Applications:
Depended on unique features, this type of bearings is better serving under conditions featured with heavy loads and difficulty in establishing or maintaining housing alignment, or shaft deflection. For instance:
Oil drill,
Iron & steel making machinery,
Hydroelectric generator
Vertical engine
Propeller shaft (used in ships and boats)
Tower crane
Extrusion press

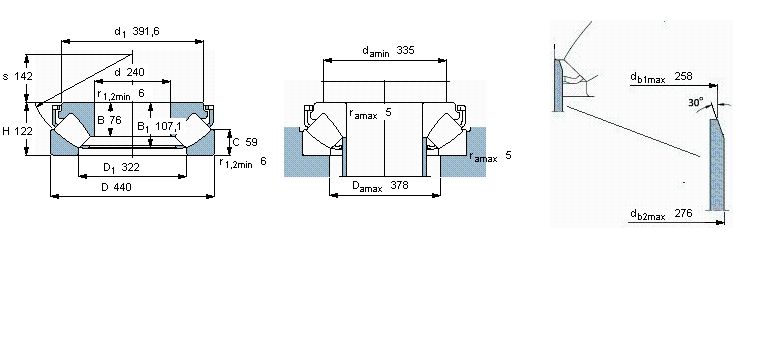

Designs:
29448 E
Product category:Spherical roller thrust bearings Spherical roller thrust bearings
Width:122 mm
Bore diameter:240 mm
Outside diameter:440 mm
Source:Product catalog | Limiting speed:1500 r/min
Reference speed:850 r/min |
