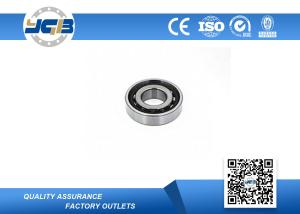

Table saw bearing ball size 17 x 40 x 12mm angular contact ball bearing 7203 B fan motor bearing
Description :
| Model | 7203 B |
| Bearing material | GCr15/AISI52100/100Cr6 |
| ID*OD*W (mm) | 17 x 40 x 12mm |
| Seal type | double shields |
| Weight(kg) | 0.065 |
| Basic dynamic load ratings/C | 9.35 kN |
| Basic static load ratings/C0 | 5.05kN |
| Lead time | Stock or 15-30days |
| Clearance | C2,C0,C3,C4,C5 |
| Viberation Level | V1,V2,V3,V4 |
| Precision Rating | P0,P6,P5, |
| MOQ | No MOQ |
| Port | Shanghai |
| Grease | Mobil polyrex EM,Kyodo Yushi SRL |
| Payment terms | T/T, L/C
|
Payment
1 : T/T: 30% as deposit and 70% balance after get copy of B/L.
2 : L/C (cannot for branded bearings.)
3 : Discuss together between buyer and supplier.
Company information :
Located in wuxi Qianqiao industry park,and was founded in 2004.Wuxi Beitong Bearing Machinery Equipment Co.,Ltd is a specialist leader in manufacturing and exporting various types of ball bearings and CNC machined components.Our manufacturer is capable of producing deep groove ball bearing, stainless steel ball bearing,miniature ball bearing and flanged ball bearing. We have the capacity to produce (500 million) annually and the ability to manufacture non-standard bearings per customer’s specifications. All bearings are high precision, low-noise with dynamic and static load ratings that conform to internationally recognized standards.We can also provide various of cold heading components, CNC components, plastic components, rubber components, metallic sintered products and so on.

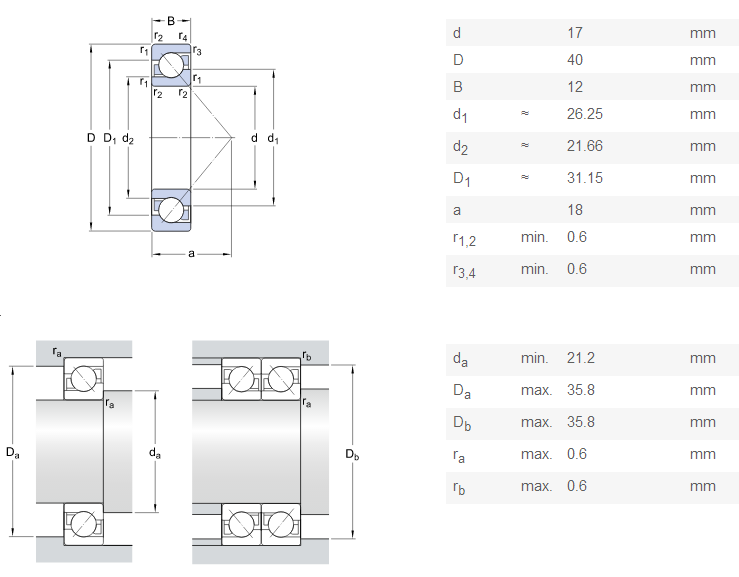

Drawing:
Series model :
| Model | Dimension | 15º |
| | d | D | B | Rated load | Grease Oil |
| | mm | Cr Cor | r/min |
| 7200 | 10 | 30 | 9 | 6.4 3.8 | 55000 84000 |
| 7201 | 12 | 32 | 10 | 7.2 4.5 | 52000 79000 |
| 7202 | 15 | 35 | 11 | 9.1 5.8 | 47000 69000 |
| 7203 | 17 | 40 | 12 | 11.3 7.4 | 39000 59000 |
| 7204 | 20 | 47 | 14 | 13.1 9.6 | 33000 49000 |
| 7205 | 25 | 52 | 15 | 16.8 13.1 | 29000 44000 |
| 7206 | 30 | 62 | 16 | 23.4 18.8 | 23000 37000 |
| 7207 | 35 | 72 | 17 | 25.8 22.9 | 17000 29000 |
| 7208 | 40 | 80 | 18 | 34.1 30.9 | 16000 27000 |
Contact us:
YGB Bearing Co.,Ltd
Add:A-2208,3rd floor,421 weiqing west road,jinshan district,Shanghai,China.
Tel: +86-510-85850066
Fax:+86-510-85850066
Whatsapp:+86-15896477526
Skype:ygbbearing
Website:www.ygbbearing.com
Dear friend, any questions please feel free to contact us, let's learn and grow together in bearing worlds!
Product Tags:
|
|
GCr15 Double Shields Angular Contact Ball Bearing 17 X 40 X 12mm 7203 B Images
|
