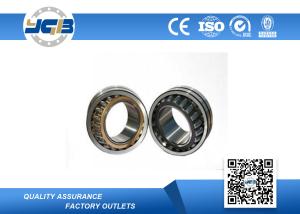

Chrome Steel Nsk Ntn Fag Spherical Roller Bearing 22309E 45 X 100 X 36 Mm

Name: Chrome Steel Nsk Ntn Fag Spherical Roller Bearing 22309E 45 X 100 X 36 Mm
Brand: YGB,OEM,SKF,NTN
Price: 1 USD

China Chrome Steel Nsk Ntn Fag Spherical Roller Bearing 22309E 45 X 100 X 36 Mm wholesale

Brand Name : YGB,OEM,SKF,NTN

Model Number : 22309E

Certification : ISO9001:2008

Place of Origin : China

MOQ : negotiation

Price : negotiation

Supply Ability : 10,000pcs per month

Packaging Details : Packed in carton firstly,and then reinforced with wooden case for outer packing

Delivery Time : 5-10 working days after received your payment

Payment Terms : T/T or LC

Model : 22309E

Payment terms : L/C,TT

Weight : 1.4

Size : 45 x 100 x 36 mm

MOQ : NO

Grease : Mobil polyrex EM,Kyodo Yushi SRL

Basic dynamic load ratings/C : 190 kN

Basic static load ratings/C0 : 176 kN

Contact Now

E series chrome steel Gcr15 spherical roller bearing 22309E 45 x 100 x 36 mm

Description:

Model	22309E
Bearing material	GCr15/AISI52100/100Cr6
IDODW (mm)	45 x 100 x 36 mm
Seal type	double shields . open ,double shield
Lead time	Stock or 15-30days
Weight(kg)	1.4
Basic dynamic load ratings/C	190 kN
Basic static load ratings/C0	176 kN
Limiting speed	7000 r/min
Clearance	C2,C0,C3,C4,C5
Viberation Level	V1,V2,V3,V4
Precision Rating	P0,P6,P5,
MOQ	No MOQ
Port	Shanghai
Grease	Mobil polyrex EM,Kyodo Yushi SRL
Payment terms	T/T, L/C

Drawing:
Chrome Steel Nsk Ntn Fag Spherical Roller Bearing 22309E 45 X 100 X 36 Mm

Series Models:

d	D	B	C	Co	r/min	L/P	Type
35	80	23	98,5	90	8000	11000	22208 EK + AH 308 *
35	90	23	107	108	7000	9500	21308 EK + AH 308 *
35	90	33	155	140	6000	8000	22308 EK + AH 2308 *
40	85	23	104	98	7500	10000	22209 EK + AH 309 *
40	100	25	129	127	6300	8500	21309 EK + AH 309 *
40	100	36	190	183	5300	7000	22309 EK + AH 2309 *
45	90	23	107	108	7000	9500	22210 EK + AHX 310 *
45	110	27	159	166	5600	7500	21310 EK + AHX 310 *
45	110	40	228	224	4800	6300	22310 EK + AHX 2310 *
50	100	25	129	127	6300	8500	22211 EK + AHX 311 *
50	120	29	159	166	5600	7500	21311 EK + AHX 311 *
50	120	43	280	280	4300	5600	22311 EK + AHX 2311 *
55	110	28	159	166	5600	7500	22212 EK + AHX 312 *
55	130	31	217	240	4800	6300	21312 EK + AHX 312 *
55	130	46	325	335	4000	5300	22312 EK + AHX 2312 *
60	120	31	198	216	5000	7000	22213 EK + AH 313 G *
60	140	33	243	270	4300	6000	21313 EK + AH 313 G *
60	140	48	357	360	3800	5000	22313 EK + AH 2313 G *
65	125	31	213	228	5000	6700	22214 EK + AH 314 G *
65	150	35	291	325	4000	5600	21314 EK + AH 314 G *
65	150	51	413	430	3400	4500	22314 EK + AHX 2314 G *
70	130	31	217	240	4800	6300	22215 EK + AH 315 G *
70	160	37	291	325	4000	5600	21315 EK + AH 315 G *
70	160	55	462	475	3200	4300	22315 EK + AHX 2315 G *
75	140	33	243	270	4300	6000	22216 EK + AH 316 *
75	170	39	331	375	3800	5300	21316 EK + AH 316 *
75	170	58	516	540	3000	4000	22316 EK + AHX 2316 *
80	150	36	291	325	4000	5600	22217 EK + AHX 317 *
80	180	41	331	375	3800	5300	21317 EK + AHX 317 *
80	180	60	577	620	2800	3800	22317 EK + AHX 2317 *
85	160	40	331	375	3800	5300	22218 EK + AHX 318 *
85	160	52,4	372	440	2800	3800	23218 CCK/W33 + AHX 3218 *
85	190	43	393	450	3600	4800	21318 EK + AHX 318 *
85	190	64	637	695	2600	3600	22318 EK + AHX 2318 *

Application:
printing presses, paper mills or coaters in high precision execution
very arduous operating conditions, e. g.continuous casters
high-temperature applications
mounting with a loose fit on roll necks
railway vehicles

Payment:
1) TT, 30% deposit , 70% before shippment.
2) L/C at sight. (high bank charge, not suggest , but acceptable )

Delivery:
1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient )
2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive )
3) More than 200 KGS, we will send by sea. ( Cheapest, but long time )
Chrome Steel Nsk Ntn Fag Spherical Roller Bearing 22309E 45 X 100 X 36 Mm

Dear friend, any questions please feel free to contact us, let's learn and grow together in bearing worlds!
